Cermet APMT1604 PDER korloys Stainless steel milling inserts
Feature
| Description | Value | |
| J20 | Technical product number | 1-02-041212 |
| J21 | Identifying order number | APMT1604PDER-ML PC5300 |
| J3 | Company code | KOR – Korloys |
| NSM | Standard number of properties layout | DIN4000-76 |
| BLD | Tool style code | 5 |
| A1 | Insert included angle | 85 Degree |
| A2 | Clearance angle major | 11 Degree |
| B1 | Cutting edge length | 16.4 mm |
| B3 | Inscribed circle diameter | 9.41 mm |
| C1 | Insert thickness | 5.76 mm |
| D1 | Corner radius | 0.8 mm |
| D4 | Cutting edge angle major | 90 Degree |
| D5 | Clearance angle wiper edge | 15 Degree |
| E41 | Cutting edge condition code | E – Rounded |
| E6 | Chip breaker face count | 1 – With chip breaker one-side |
| E9 | Chip breaker manufacturers designation | ML |
| F1 | Insert hand | R – Right |
| G1 | Tolerance class insert | M |
| G4 | Insert thickness total | 5.76 mm |
| G5 | Insert mounting style code | 3 – Counter bore for screws with taper angle from 40 to 60 |
| G6 | Fixing hole diameter | 4.5 mm |
| H11 | Standard designation of the grade, main application | Carbide |
| H2 | Coolant supply property | 0 – Without coolant supply |
| H3 | Grade manufacturer’s designation | PC5300 |
| H5 | Coating | Coated |
| ISISO | ISO property | 0 |
| J11 | Standard designation | APMT1604PDER |
Main Products
| Cutting Tools | Measuring Tools |
| Carbide Insert | Vernier Caliper |
| Tool Holder | Digital Caliper |
| Boring Bar | Dial Indicator |
| End Mills | Digital Indicator |
| Reamers | Comparator |
| Collet Chuck | Tool Adjusters |
| Drill Bit | Caliper Gauges |
| Milling Cutter | Gauge Blocks |
| Hand Taps | Gauges |
| Machine Taps | Micrometer |

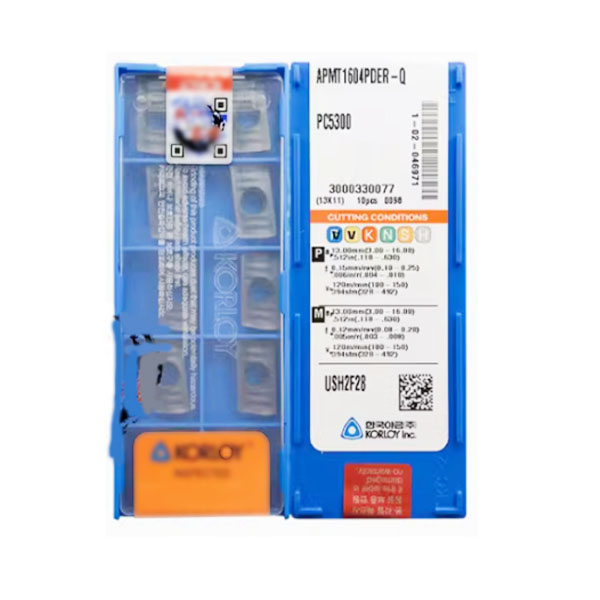

Detailed Photo
Packaging & Shipping
Packaging:
Packaging:10 pcs/plastic box, then by carton;
1.Wrap each product with foam
2.Put the product into the carton
3 .Seal the outer packing with tape
Shipping:
Shipping method: by air or by sea. We have a long-term cooperation with DHL,Fedex and UPS logistics company,and often get special discount about the freight charge.
Delivery time:Short;
Price terms:EXW, FOB, CFR, CIF.
Payment terms: T/T, Paypal, Escrow, L/C, Western Union.
