CNC Cylindrical Blade Inserts for Steel Wnmg080408pm Ybc251

Short Description:

Features of Zcc-ct carbide inserts

1). Original Zcc-ct Brand cutting tools carbide insert ;

2). Wear resistance and long tool life;

3). Suitable for steel & stainless steel & cast iron & nonferrous products;

4). High speed and high efficiency cutting;

5). Stability and security in productive turning;

6). High toughness and low cutting force;

7). ISO & JIS application area.

Send email to us

Product Detail

Product Tags

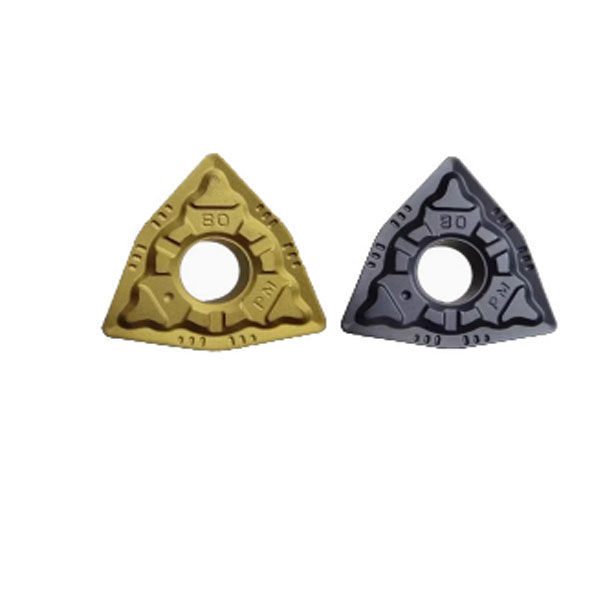

CNC Cylindrical Blade Inserts for Steel Wnmg080408pm Ybc251

Product Description

Specifications Details

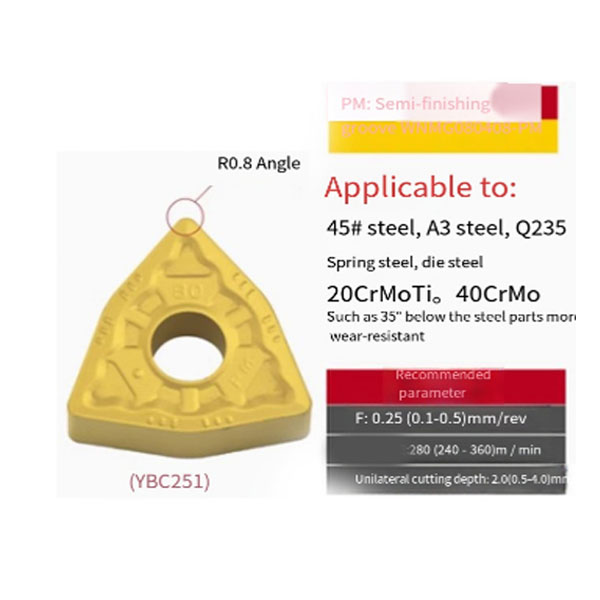

PM: Semi-finishing groove type R0.8 cents
WNMG080408-PM Applicable to:45# steel, A3 steel, Q235 spring steel, die steel 20CrMoTi, 40CrMo
Such as 35° below the steel parts more wear-resistant
Recommended parameter F: 0.25 (0.1 0.5) mm/rev Vc:280(240-360)m/min (YBC251)
Unilateral cutting depth :2.0(0.5~4.0)mm

Product Name	CCMT turning insert
Brand	ZCCC

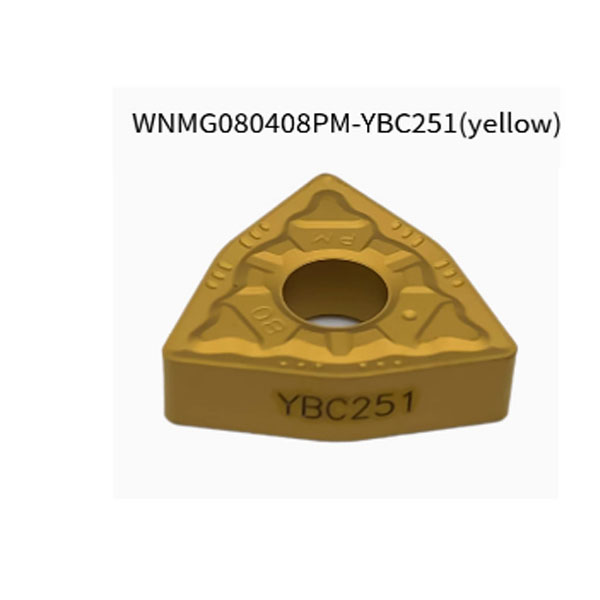

Model	WNMG080408PM YBC251
Coating	CVD/PVD
Place of Origin	China

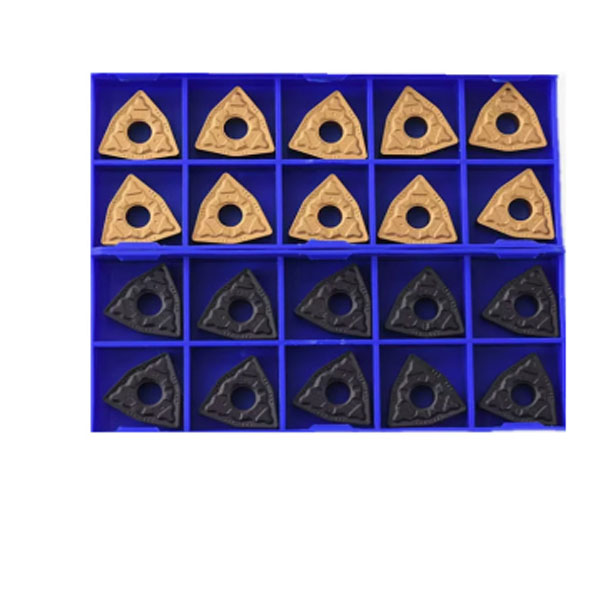

Package	10pcs in one plastic box
Advantage	Original/Good stability/Long tool life/Competive prive
Used	CNC Lathe machinery
MOQ	10 pieces

If you want to find the best balance between cost and efficiency, choose ZCCC brand. If you are looking for
genuine, complete ZCCC brand products, please choose us.
Main Products:

Cutting Tools	Measuring Tools
Carbide Insert	Vernier Caliper
Tool Holder	Digital Caliper
Boring Bar	Dial Indicator
End Mills	Digital Indicator
Reamers	Comparator
Collet Chuck	Tool Adjusters
Drill Bit	Caliper Gauges
Milling Cutter	Gauge Blocks
Hand Taps	Gauges
Machine Taps	Micrometer

Main Famous :
Material Grades List:

NO.	Material
YBC151	High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating.
YBC152	Thick TiCN and Al2O3 coating
YBC251	Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBC252	Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBC351	Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBG102	Nc-TiAN coating and fine-grained matrix.
YBG202	Nc-TiAN coating and fine-grained matrix.
YBG205	Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge.
YBG302	Nc-TiAN coating and flexible cemented carbide matrix.
YBM151	Special organizational structure and TiCN, thin Al2O3 and TiN coating.
YBM251	Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating.
YBM253	With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix.
YBD052	CVD coating(extra thick Al2O3 & thick TiCN), hard matrix.
YBD102	CVD coating (thick Al2O3 & thick TiCN) , hard matrix.
YBD152	CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping.
YBD252	CVD coating (middle thick Al2O3 & thick TiCN), hard matrix.
YNG151	Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design.
YNG151C	Physics weather deposit (PVD) coating, high toughness ceramal matrix.
YD101	Fine particle hardness phase WC and bond phase Co.
YD201	Middle particle hardness phase WC and bond phase Co.
