Low Price Hand Tool Ccmt060204-Hm Ybc251 CNC Zcc Carbide Inserts
Low Price Hand Tool Ccmt060204-Hm Ybc251 CNC Zcc Carbide Inserts
Low Price Hand Tool Ccmt060204-Hm Ybc251 CNC Zcc Carbide inserts
Specifications Details
|
Original ZCCC milling inserts CCMT060204-HM YBC251
|
|
|
Product Name
|
ZCCC CARBIDE INSERTS
|
|
Brand
|
ZCCC
|
|
Place of Origin
|
CHINA
|
|
Model Number
|
CCMT060204-HM YBC251
|
|
Workpiece
|
Stainless Steel,Steel,Cast Iron
|
|
Application
|
Milling
|
|
Color
|
Silver
|
|
Hardness
|
HRC40-60
|
|
Coating for Inserts
|
Cermet Coating
|
|
Material for Inserts
|
Tungsten Carbide
|
|
Available toolholder
|
Milling Tool
|
|
Usage
|
cnc lathe machinery
|
|
OEM Service
|
Supply
|
Main Products:
| Cutting Tools | Measuring Tools |
| Carbide Insert | Vernier Caliper |
| Tool Holder | Digital Caliper |
| Boring Bar | Dial Indicator |
| End Mills | Digital Indicator |
| Reamers | Comparator |
| Collet Chuck | Tool Adjusters |
| Drill Bit | Caliper Gauges |
| Milling Cutter | Gauge Blocks |
| Hand Taps | Gauges |
| Machine Taps | Micrometer |
Material Grades List:
| NO. | Material |
| YBC151 | High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating. |
| YBC152 | Thick TiCN and Al2O3 coating |
| YBC251 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
| YBC252 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
| YBC351 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
| YBG102 | Nc-TiAN coating and fine-grained matrix. |
| YBG202 | Nc-TiAN coating and fine-grained matrix. |
| YBG205 | Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge. |
| YBG302 | Nc-TiAN coating and flexible cemented carbide matrix. |
| YBM151 | Special organizational structure and TiCN, thin Al2O3 and TiN coating. |
| YBM251 | Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating. |
| YBM253 | With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix. |
| YBD052 | CVD coating(extra thick Al2O3 & thick TiCN), hard matrix. |
| YBD102 | CVD coating (thick Al2O3 & thick TiCN) , hard matrix. |
| YBD152 | CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping. |
| YBD252 | CVD coating (middle thick Al2O3 & thick TiCN), hard matrix. |
| YNG151 | Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design. |
| YNG151C | Physics weather deposit (PVD) coating, high toughness ceramal matrix. |
| YD101 | Fine particle hardness phase WC and bond phase Co. |
| YD201 | Middle particle hardness phase WC and bond phase Co. |

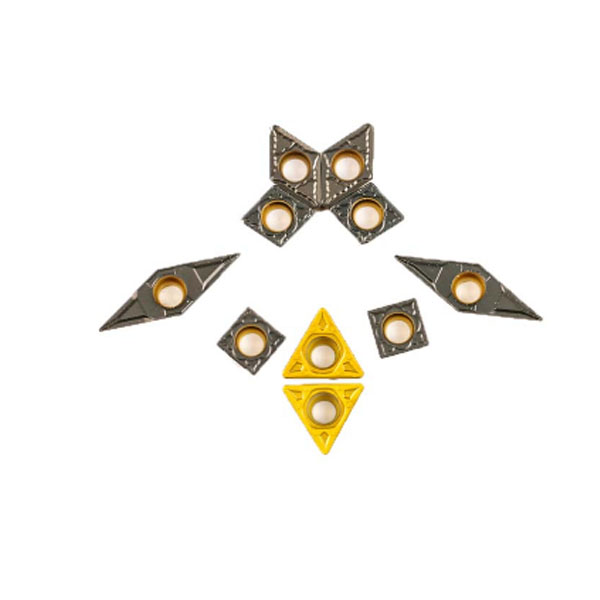

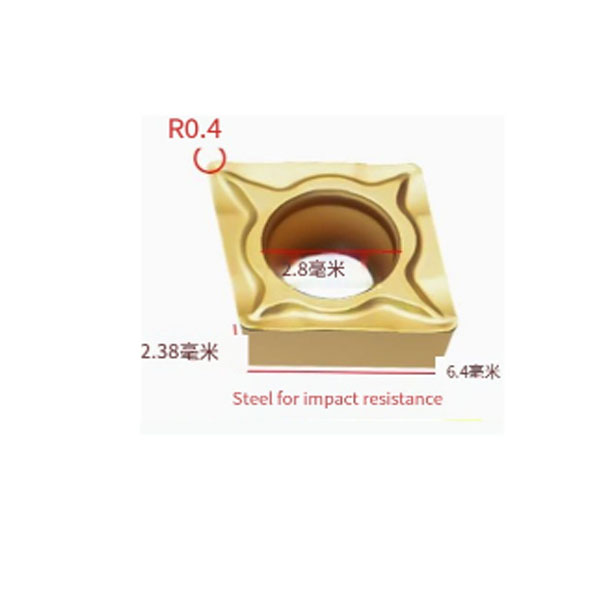

Detailed Photos
Company Profile
Jinan Terry CNC Tool Co.,Ltd, which is near the world’s fourth largest port, Qingdao Port. three hours drive from the capital of China, BeiJing. Located in the famous industrial city Jinan, the capital of Shandong Province.
Established in 2011,after 13 years of development,we have become an outstanding comprehensive agent for imported CNC cutting tools. We have more than 5 engineers, 50 staff and 10 excellent salesmen and related service persons. We sell all kinds of CNC tools,such as carbide inserts,tool holders,end mills,taps,drills,collect chucks,etc.
We have high quality products and affordable prices. We also cooperate with multiple well-known suppliers.We have a large amount of stocks and fast delivery speed.And we promise our products are 100% original genuine products. The quality of products, management system, sales volume and brand awareness are all in the front ranks.We are trying our best to provide the world manufacturing with as more as excellent cutting tools.
Our company adhere to the business philosophy:”Honesty, trustworthiness, new, fast, excellent and inexpensive” and the service tenet of “Buy the rest assured that with reality, “supply the imported world famous CNC tools for mechanical processing enterprises.
Jinan Terry CNC Tool Co.,Ltd upholding the” customer first service supreme” management ideas, sincerely welcome the people from all over the world to visit and cooperate
Packaging:
Packaging:10 pcs/plastic box, then by carton;
1.Wrap each product with foam
2.Put the product into the carton
3 .Seal the outer packing with tape
Shipping:
Shipping method: by air or by sea. We have a long-term cooperation with DHL,Fedex and UPS logistics company,and often get special discount about the freight charge.
Delivery time:Short;
Price terms:EXW, FOB, CFR, CIF.
Payment terms: T/T, Paypal, Escrow, L/C, Western Union.
FAQ:
1.Why customers choose us ?
We can supply products with very high efficiency and very competitive prices.
There are some qty in stock.
There are many famous brands we are selling.
2.If our products are original imported ?
Yes.We promise our products are 100% original.
3. Do you provide after-sales service?
Yes. So if you find any problems after using our cutting tools, please feel free to tell us and we will help you solve it as soon as possible. Any feedback you have about the product is our way to improve.
4. How can I pay for my purchase?
T/T, Paypal, Escrow, L/C, Western Union.
5. How long is our order delivery time?
Almost most of the goods can be shipped within a week
