Popular CNC Machine Lathe Turning Carbide Inserts Cnmg120404ms Ca6525

Short Description:

Popular CNC Machine Lathe Turning Carbide Inserts Cnmg120404ms Ca6525

Product Description

Features

Description	Value
Technical product number	TJV00921
Identifying order number	CNMG120404MS CA6525
Company code	KYO – Kyocera
Standard number of properties layout	DIN4000-76
Tool style code	3
Insert included angle	80 Degree
Clearance angle major	0 Degree
Cutting edge length	12.896 mm
Inscribed circle diameter	12.7 mm
Insert thickness	4.76 mm
Corner radius	0.4 mm
Insert hand	N – Neutral
Tolerance class insert	M
Insert mounting style code	2 – With cylindrical bore
Coolant supply property	0 – Without coolant supply
Grade manufacturer’s designation	CA6525
Coating	CVD Coated Carbide
ISO property	1
Standard designation	CNMG120404MS
Standard designation ANSI	CNMG431MS
Master insert identification	CNMG120404MS CA6525

Specifications Details

Model	CNMG120404MS CA6525
Brand Name	KYOCERAS
Place of Origin	Japan
Coating	PVD CVD
Processing Material	STEEL/STAINLESS STEEL/CAST IRON
Package	original plastic box
MOQ	10PCS
Application	External turning work on metal material
Delivery time	Short
Transport	TNTDHL FedEx EMS UPS
Payment	L/C T/T D/P Western Union/ Paypal

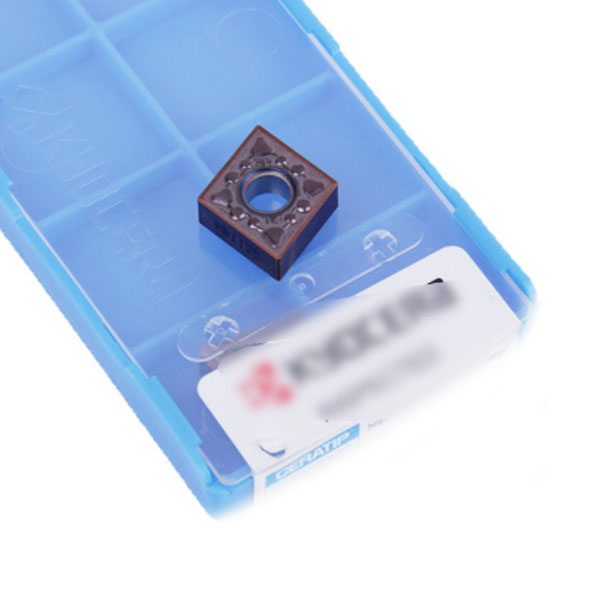

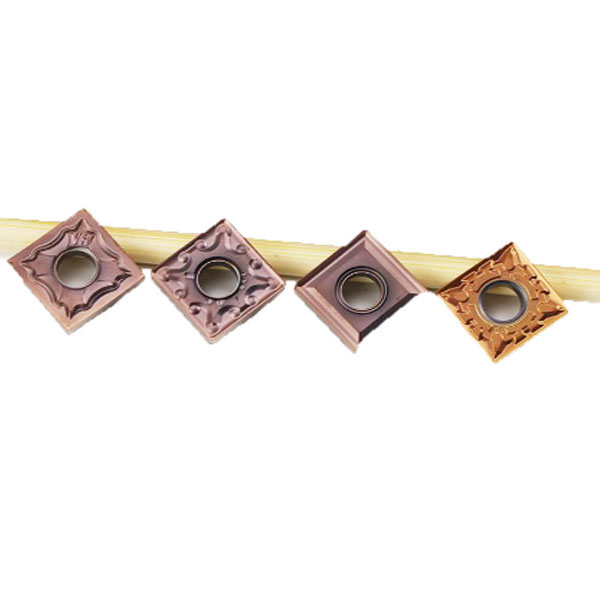

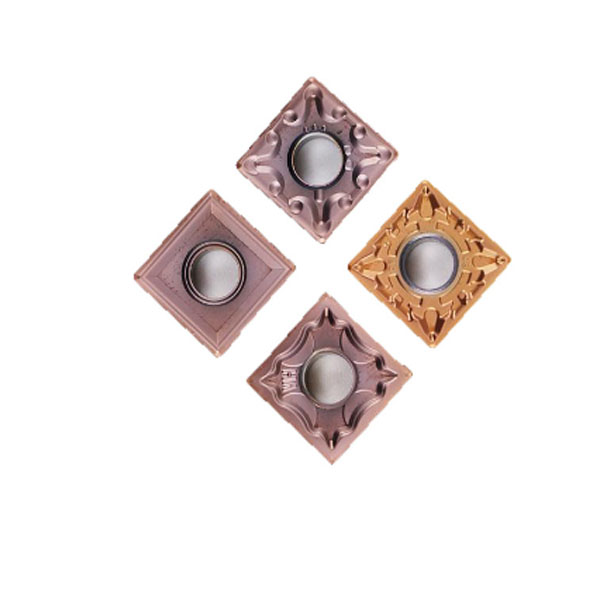

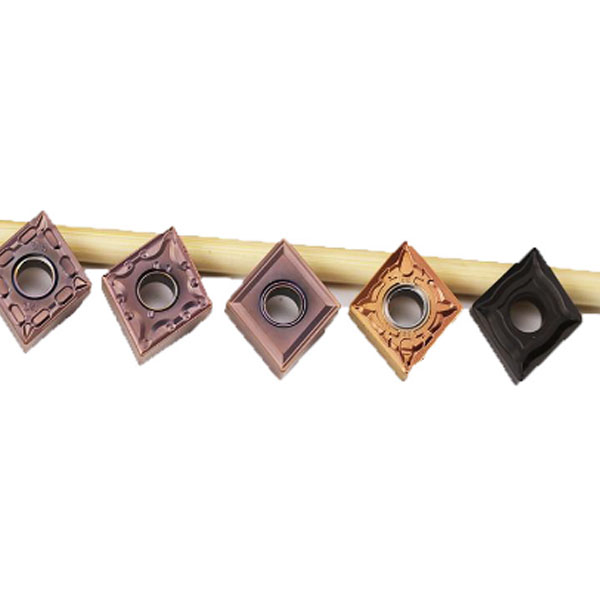

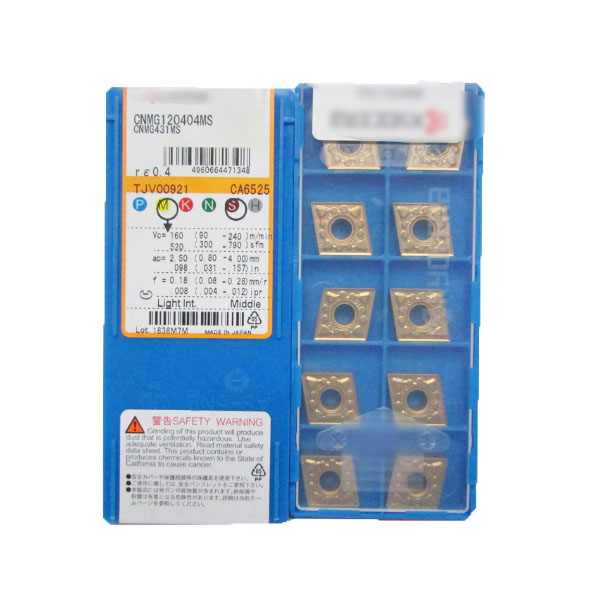

Detailed Photos

Detailed Photos

Company Profile

Company Profile
Jinan Terui Company was founded in 2011, we adhering to the “buy the rest assured, use the real” service purpose, for the machining enterprises to supply the world famous brand of imported CNC tools, machining center tools. At present, our company operates the product range of turning, milling, small bore cutter, cutter plate system, thread machining, boring system, and also has the world famous tool training and working for many years of tool technical experts and experienced senior tool engineers to provide technical support for the end customer.

Packaging & Shipping

Packaging:
Packaging:10 pcs/plastic box, then by carton;
1.Wrap each product with foam
2.Put the product into the carton
3 .Seal the outer packing with tape

Shipping:
Shipping method: by air or by sea. We have a long-term cooperation with DHL,Fedex and UPS logistics company,and often get special discount about the freight charge.
Delivery time:Short;
Price terms:EXW, FOB, CFR, CIF.
Payment terms: T/T, Paypal, Escrow, L/C, Western Union.

FAQ

FAQ:
1.Why customers choose us ?
We can supply products with very high efficiency and very competitive prices.
There are some qty in stock.
There are many famous brands we are selling.
2.If our products are original imported ?
Yes.We have the right to improt and export trading business,and have stable partners both at home and broad.
3. Do you provide after-sales service?
Yes. So if you find any problems after using our cutting tools, please feel free to tell us and we will help you solve it as soon as possible. Any feedback you have about the product is our way to improve.
4. How can I pay for my purchase?
T/T, Paypal, Escrow, L/C, Western Union.
5. How long is our order delivery time?
Almost most of the goods can be shipped within a week
