Zcc Square Turning Inserts Snmm190616-Dr Ybc251 Steel Processing

Short Description:

Features of Zcc-ct carbide inserts

1). Original Zcc-ct Brand cutting tools carbide insert ;

2). Wear resistance and long tool life;

3). Suitable for steel & stainless steel & cast iron & nonferrous products;

4). High speed and high efficiency cutting;

5). Stability and security in productive turning;

6). High toughness and low cutting force;

7). ISO & JIS application area.

Send email to us

Product Detail

Product Tags

ZCC.CT Square Turning Blade SNMM190616-DR YBC251 Steel Processing

Product Description

Specifications Details
Key attributes

Double-sided DR

P class, K class material light load rough processing recommended groove

M class double-sided chip breaker, light load rough machining preferred groove, metal removal rate and cutting edge economy can be both.

Excellent combination of toughness matrix with MT-TiCN, thick Al2O3, TiN coating
with good cutting edge safety; Suitable for semi-finishing of steel.
Industry-specific attributes

Use	External Turning Tool
Coating	PVD CVD

Other attributes

Place of Origin	Jinan, China
Warranty	no
Customized support	OEM, ODM
Brand Name	ZCC.CT
Model Number	SNMM190616-DR YBC251
Packaging and delivery
Selling Units:	Single item
Single package size:	14X6X2 cm
Single gross weight:	0.030 kg

Description	Value
Identifying order number	SNMM190616-DR YBC251
Company code	ZCC – ZCC Cutting Tools
Standard number of properties layout	DIN4000-76
Tool style code	2
Insert included angle	90 Degree
Clearance angle major	0 Degree
Cutting edge length	19.05 mm
Inscribed circle diameter	19.05 mm
Insert thickness	6.35 mm
Corner radius	1.6 mm
Chip breaker manufacturers designation	DR
Insert hand	N – Neutral
Tolerance class insert	M
Insert thickness total	6.35 mm
Insert mounting style code	2 – With cylindrical bore
Fixing hole diameter	7.94 mm
Standard designation of the grade, main application	P10-P30
Grade manufacturer’s designation	YBC251
Coating	MT-TiCN,Al2O3,TiN
ISO property	0

Main Products:

Cutting Tools	Measuring Tools
Carbide Insert	Vernier Caliper
Tool Holder	Digital Caliper
Boring Bar	Dial Indicator
End Mills	Digital Indicator
Reamers	Comparator
Collet Chuck	Tool Adjusters
Drill Bit	Caliper Gauges
Milling Cutter	Gauge Blocks
Hand Taps	Gauges
Machine Taps	Micrometer

Main Famous brand:
Material Grades List:

NO.	Material
YBC151	High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating.
YBC152	Thick TiCN and Al2O3 coating
YBC251	Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBC252	Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBC351	Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBG102	Nc-TiAN coating and fine-grained matrix.
YBG202	Nc-TiAN coating and fine-grained matrix.
YBG205	Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge.
YBG302	Nc-TiAN coating and flexible cemented carbide matrix.
YBM151	Special organizational structure and TiCN, thin Al2O3 and TiN coating.
YBM251	Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating.
YBM253	With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix.
YBD052	CVD coating(extra thick Al2O3 & thick TiCN), hard matrix.
YBD102	CVD coating (thick Al2O3 & thick TiCN) , hard matrix.
YBD152	CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping.
YBD252	CVD coating (middle thick Al2O3 & thick TiCN), hard matrix.
YNG151	Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design.
YNG151C	Physics weather deposit (PVD) coating, high toughness ceramal matrix.
YD101	Fine particle hardness phase WC and bond phase Co.
YD201	Middle particle hardness phase WC and bond phase Co.

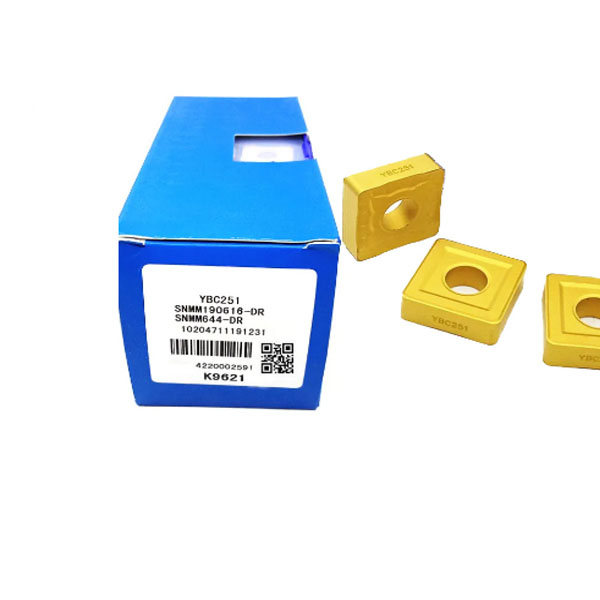

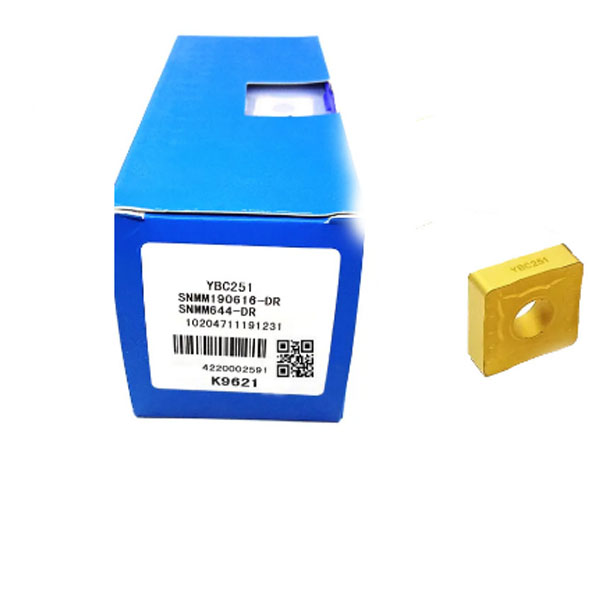

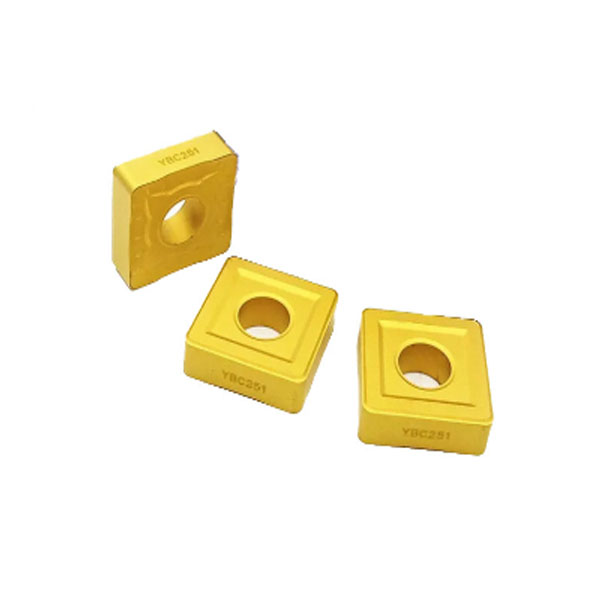

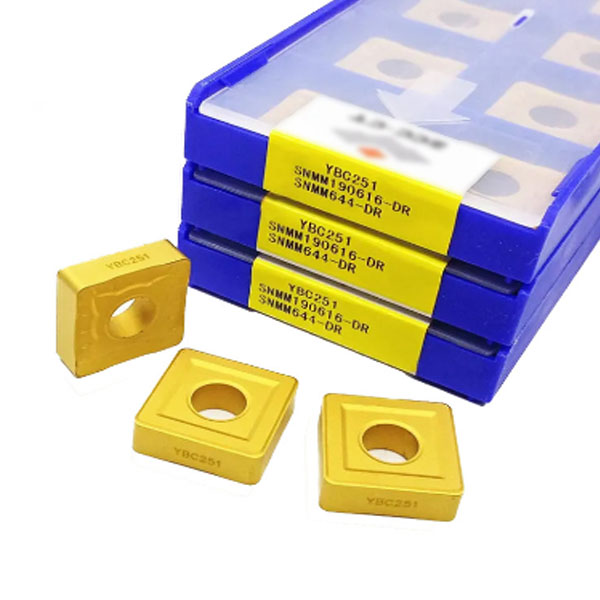

Detailed Photos

Detailed Photos

Company Profile

Company Profile
Jinan Terry CNC Tool Co.,Ltd, which is near the world’s fourth largest port, Qingdao Port. three hours drive from the capital of China, BeiJing. Located in the famous industrial city Jinan, the capital of Shandong Province.
Established in 2011,after 13 years of development,we have become an outstanding comprehensive agent for imported CNC cutting tools. We have more than 5 engineers, 50 staff and 10 excellent salesmen and related service persons. We sell all kinds of CNC tools,such as carbide inserts,tool holders,end mills,taps,drills,collect chucks,etc.
We have high quality products and affordable prices. We also cooperate with multiple well-known suppliers.We have a large amount of stocks and fast delivery speed.And we promise our products are 100% original genuine products. The quality of products, management system, sales volume and brand awareness are all in the front ranks.We are trying our best to provide the world manufacturing with as more as excellent cutting tools.
Our company adhere to the business philosophy:”Honesty, trustworthiness, new, fast, excellent and inexpensive” and the service tenet of “Buy the rest assured that with reality, “supply the imported world famous CNC tools for mechanical processing enterprises.
Jinan Terry CNC Tool Co.,Ltd upholding the” customer first service supreme” management ideas, sincerely welcome the people from all over the world to visit and

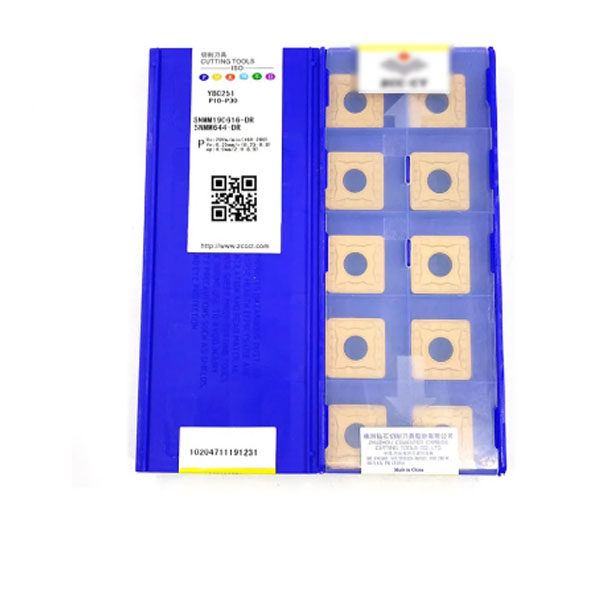

Packaging:
